CDT-36V-AC

Description Group Created with Sketch.

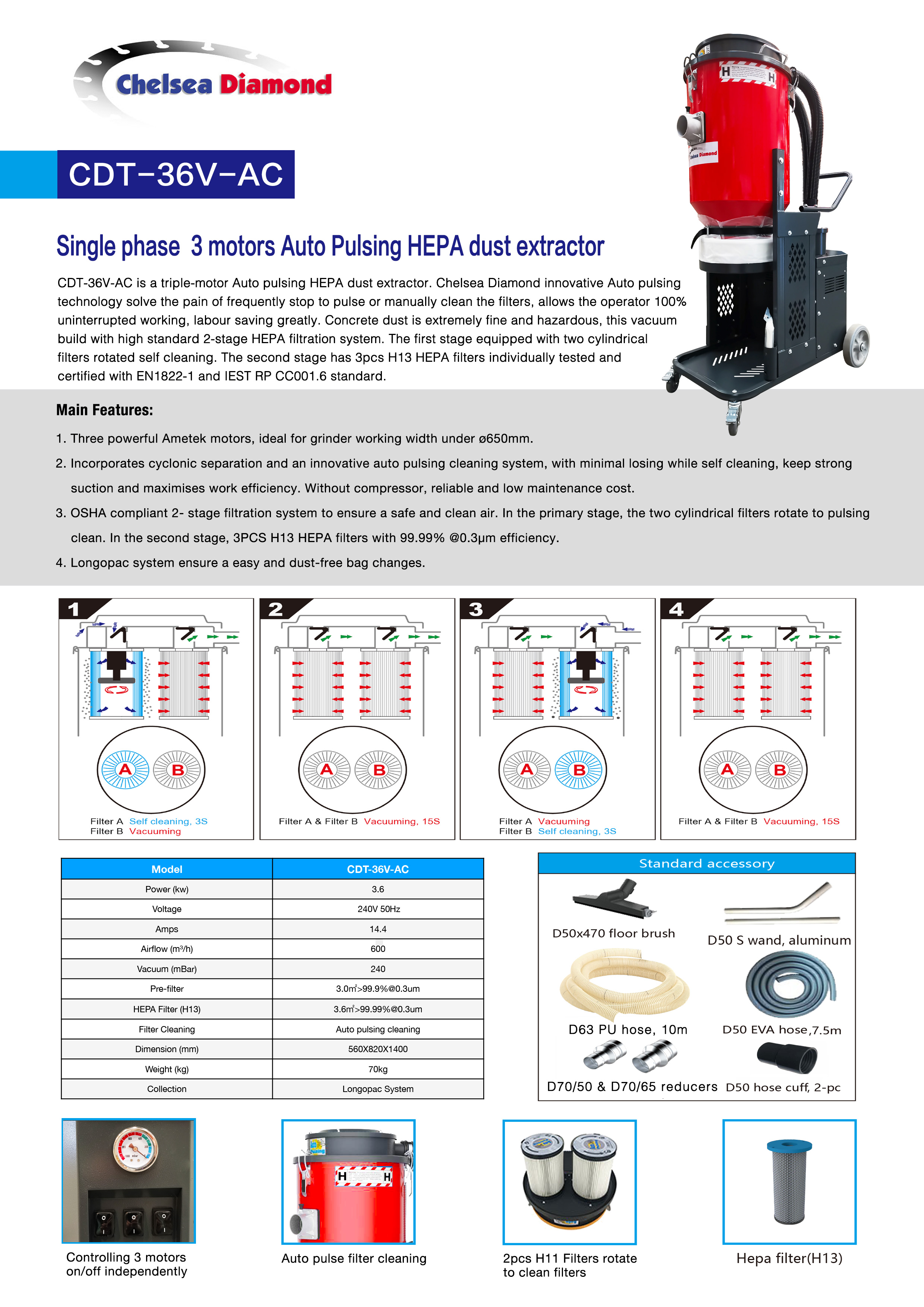

CDT-36V-AC is a triple-motor Auto pulsing HEPA dust extractor. Chelsea Diamond innovative Auto pulsing technology solve the pain of frequently stop to pulse or manually clean the filters, allows the operator 100% uninterrupted working, labour saving greatly. Concrete dust is extremely fine and hazardous, this vacuum build with high standard 2-stage HEPA filtration system. The first stage equipped with two cylindrical filters rotated self cleaning. The second stage has 3pcs H13 HEPA filters individually tested and certified with EN1822-1 and IEST RP CC001.6 standard.

Main Features:
  1. Three powerful Ametek motors, ideal for grinder working width under ø650mm.
  2. Incorporates cyclonic separation and an innovative auto pulsing cleaning system, with minimal losing while self cleaning, keep strong suction and maximises work efficiency. Without compressor, reliable and low maintenance cost.
  3. OSHA compliant 2- stage filtration system to ensure a safe and clean air. In the primary stage, the two cylindrical filters rotate to pulsing clean. In the second stage, 3PCS H13 HEPA filters with 99.99% @0.3μm efficiency.
  4. Longopac system ensure a easy and dust-free bag changes.
Variations Group Created with Sketch.
Description

CDT-36V-AC Dry Auto-Clean Dust Extractor 3x1200W with 3xHEPA filters (H13) 230V/50Hz 220mbar 600 M3/H complete with Longopac holder ø50 tool kit (7.5M hose, wand & foot)

Code

92470007

Power(Kw)

3.6

Voltage

230V 50Hz

Amps

14.4

Airflow(m3)

600 M3/H

Vacuum(mBar)

240

Pre-filter

3.0m² >99.5%@1.0µm

Hepa filter(H13)

3.6m² >[email protected]µm

Filter cleaning

Auto pulsing cleaning

Dimension(mm)

560x820x1400

Weight(kg)

70kg

Collection

Longopac Bag
